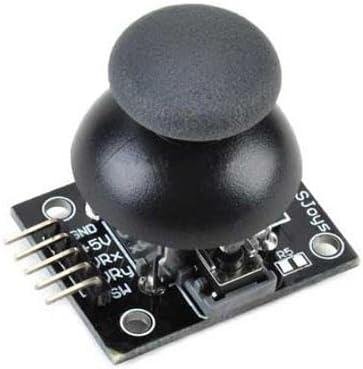

Thumb Joystick 2 Axis Analog Output

This analog joystick is modeled after the familiar joysticks found on PlayStation 2 controllers, making it ideal for game controllers, robotics, and custom electronics projects. Directional movements are detected using two independent 10K potentiometers—one for the X-axis and one for the Y-axis—while the joystick also includes a select button that activates when the stick is pressed down.

Designed for comfort and precision, the joystick features a spring-loaded center return and a cup-style knob for ergonomic handling.

Key Features

• Two independent 10K potentiometers with a common ground for X and Y axes
• Spring auto-return to center for precise control
• Comfortable cup-type knob
• Integrated switch for select/button press
• Connector Pins: +5V, GND, VRx, VRy, SW

Specifications

• Power Consumption: 0.01 W
• Operating Interface: Dual 10K potentiometers with common ground
• Operating Temperature: 0°C to 70°C (+32°F to +158°F)

Pin Description

• GND: Ground
• +5V: Power supply
• VRx: Voltage proportional to X-axis position
• VRy: Voltage proportional to Y-axis position
• SW: Pushbutton switch

This PS2-style analog joystick module is a versatile input device for gaming projects, robotic control, and custom microcontroller applications, offering precise movement detection and easy integration.
