Arduino Shield - Prototype Shield With Mini Breadboard

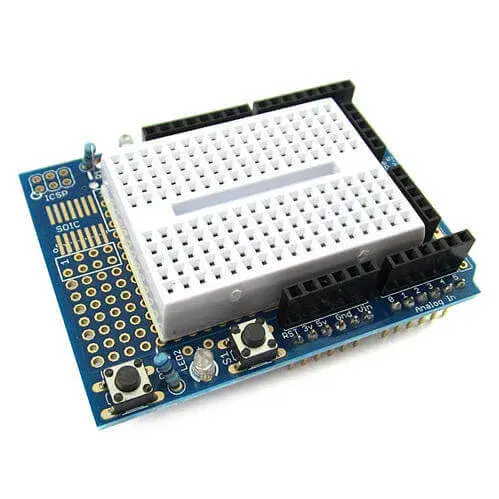

The UNO ProtoShield Prototype Expansion Board, used with the Arduino UNO, allows you to build and test custom circuits efficiently. Components can be directly soldered onto the board, or circuits can be connected via the included mini breadboard. The breadboard attaches to the board using double-sided adhesive, and can be separated when soldering is needed.

Combined with the SYB-170 mini breadboard, the ProtoShield makes designing custom circuits simple. You can solder components directly to the prototyping area for permanent projects or use the small solderless breadboard to quickly test circuit ideas without soldering.

The board provides extra connections for all Arduino I/O pins and includes space for both through-hole and surface-mount ICs, making it easy to integrate your custom circuit and Arduino into a single module.

The ProtoShield comes with two pre-wired buttons and two LEDs, ready for immediate use, with all pins and power connections accessible—ideal for rapid prototyping with Arduino.

Features:

• Standard 0.1" x 0.1" prototyping grid with large pads
• Stacking headers and plain header included, giving flexibility when soldering
• IC socket pattern supports DIP ICs up to 20 pins
• Power rails along the middle and sides of the board
• Includes a reset button and an extra general-purpose button
• Two 3mm LEDs (red and green) with matching resistors
• Pass-thru ICSP stacking header for stacking shields or using an AVR programmer
• Surface-mount area for up to 14 SOIC-size parts
• Compatible with small breadboards
• All pins brought out for easy access
• Gold-plated pads for better connectivity
• Two 0.1µF capacitors for improved power stability

Package Includes:

• 1 x UNO ProtoShield Prototype Expansion Board with SYB-170 Mini Breadboard

Specifications:

• Breadboard Points: 170
• Shield Size: 70 × 54 mm
• Breadboard Size: 48 × 34 mm
• Weight: 30 g
• Shipment Weight: 0.033 kg
• Shipment Dimensions: 9 × 5 × 2 cm
