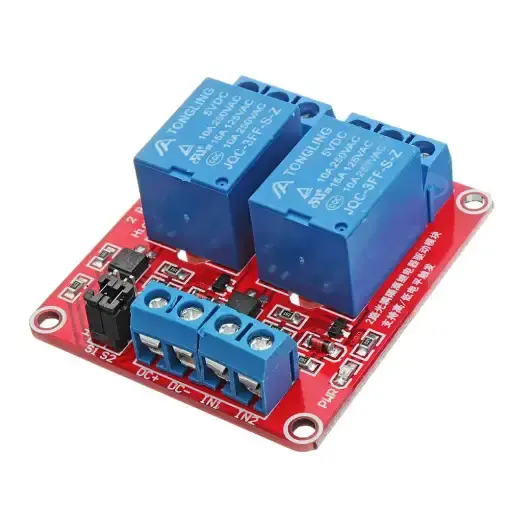

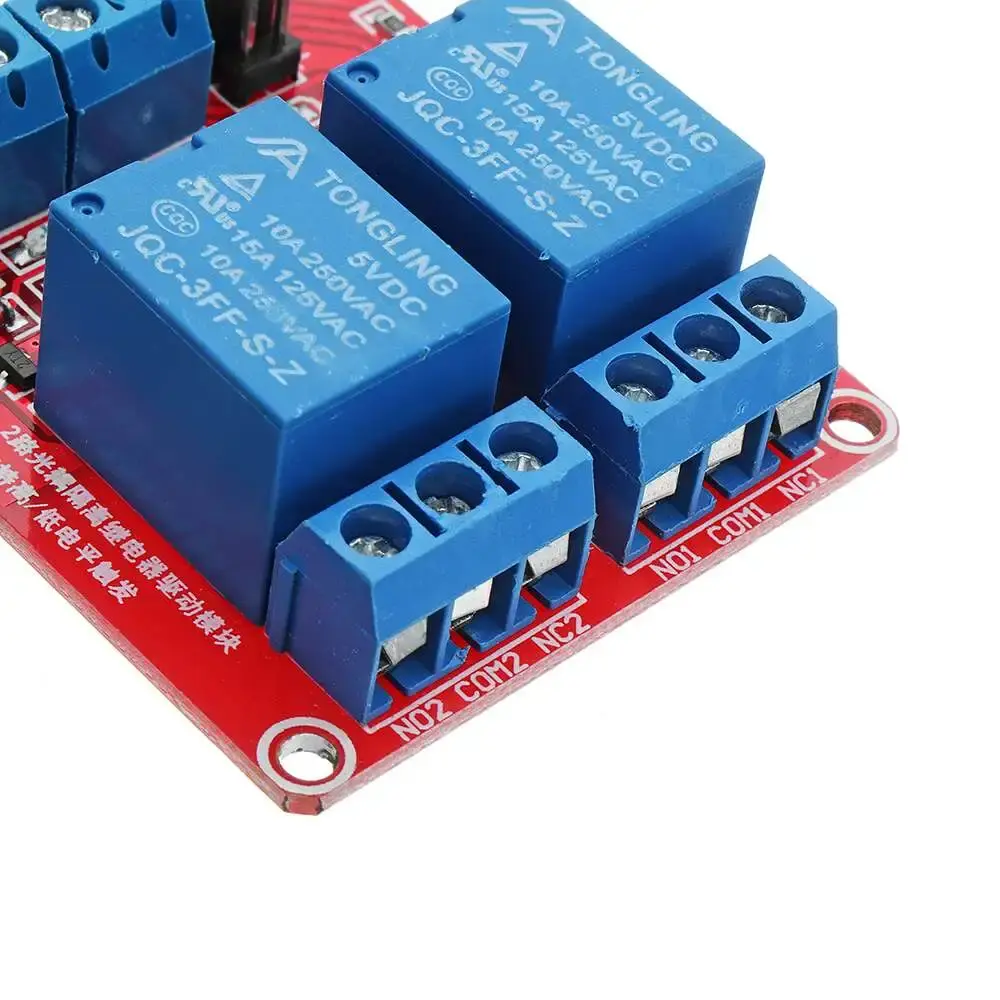

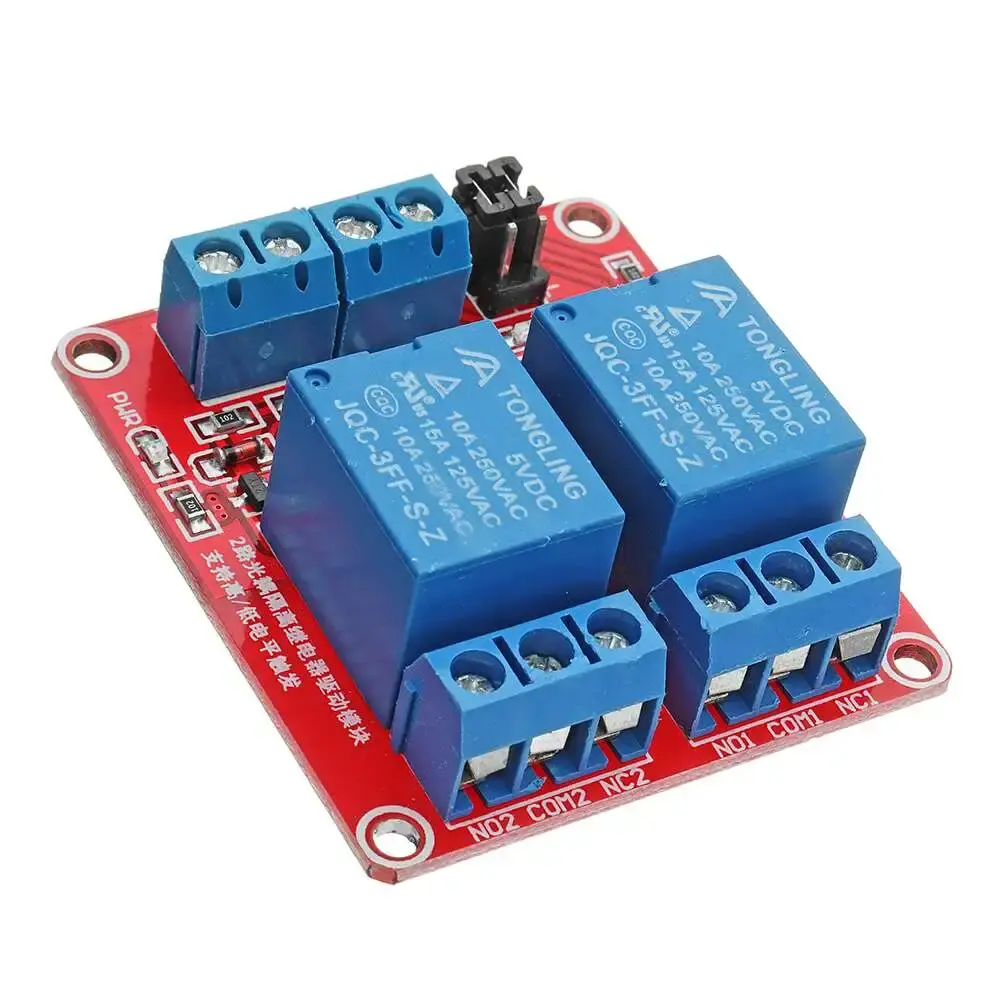

2 Output Relay Module Works on 5V Signal

Specifications

• Maximum Load (per relay): AC 250V / 10A, DC 30V / 10A
• Relay Drive Current: 20 mA per channel
• Operating Voltage: 5V DC
• Module Dimensions: 5 × 4 × 1.85 cm (L × W × H)
• Status LEDs: Integrated LED indicators
• Isolation: Optocoupler isolation for enhanced safety

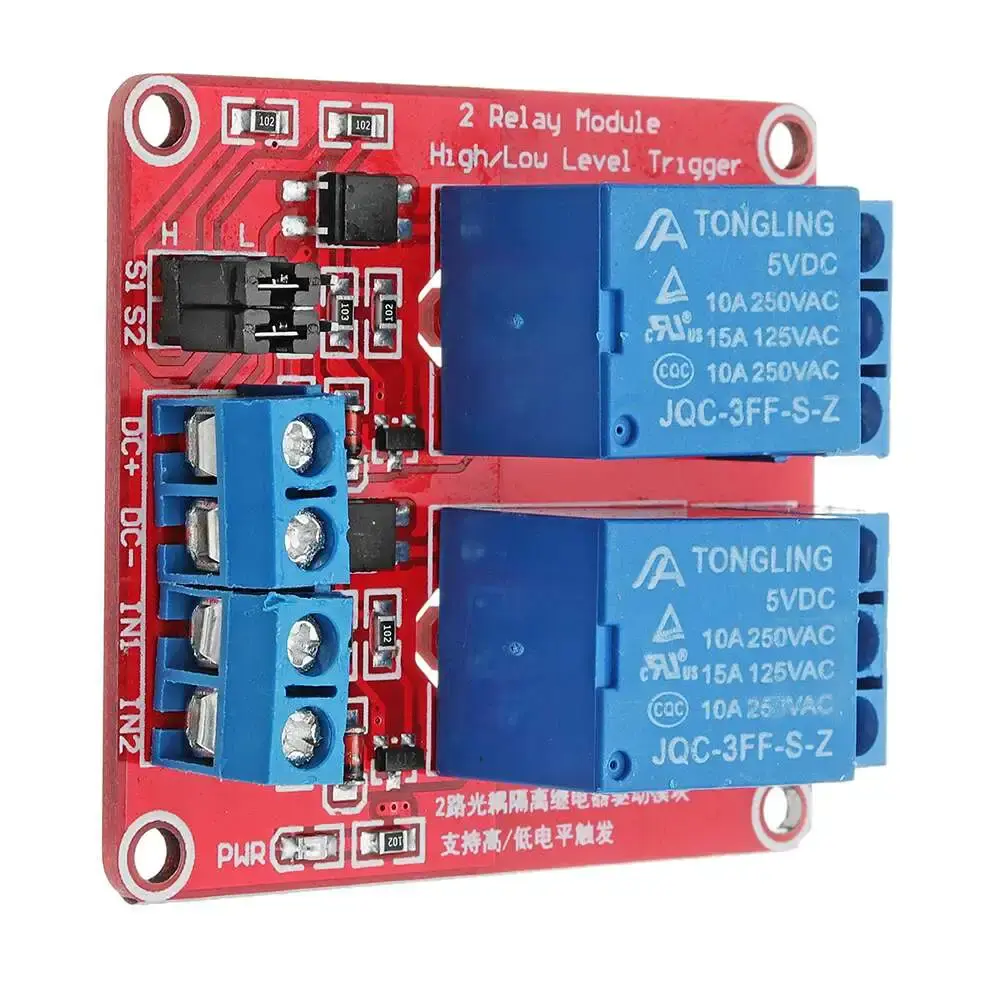

• Trigger Mode: Selectable high-level or low-level trigger

Module Interface

• VCC: +5V DC power input
• GND: Ground
• IN1 – IN2: Control inputs for Relay 1 and Relay 2

This module is ideal for motor control, pump activation, and other switching applications when used with microcontrollers, Arduino boards, or PC control ports.
